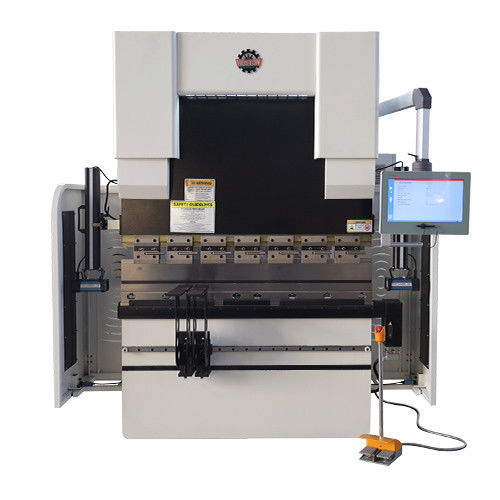

6 Axis CNC Press Brake Machine Hybrid
  • 6 Axis CNC Press Brake Machine Hybrid
  • 6 Axis CNC Press Brake Machine Hybrid
  • 6 Axis CNC Press Brake Machine Hybrid
  • 6 Axis CNC Press Brake Machine Hybrid
6 Axis CNC Press Brake Machine Hybrid

6 Axis CNC Press Brake Machine Hybrid

Brand Name Hoston
Model Number HDE-63T/1500
Product Details
Color:
Customerized
Warranty:
12 Month
Condition:
New
Ton:
630KG
Bending Length:
1500mm
Highlight:

6 axis cnc press brakes

,

cnc brake press machines vp88

,

cnc brake press

Payment & Shipping Terms
Minimum Order Quantity
1
Payment Terms
L/C, T/T
Supply Ability
100
Product Description

6+1 Axis Hybrid CNC Press Brake

HDE SERIES OIL-ELECTRIL HYBRID CNC PRESS BRAKE

New Genius HDE Series Hybrid servo CNC press brake has increased working speeds, stroke, daylight & pressing capacities.

  • Less Waste, Less Maintentance
  • High performance
  • Same Job, 50% Less Energy
  • Low noise



Mdel Unit 70T/2550 70T/3100 110T/3100 110T/4100 130T/3100 130T/4100 170T/3100 170T/4100 220T/3100 220T/4100
Bending force KN 700 700 1100 1100 1300 1300 1700 1700 2200 2200
Bending length mm 2550 3100 3100 4100 3100 4100 3100 4100 3100 4100
Diatance between upright mm 2100 2600 2600 3600 2600 3600 2600 3600 2600 3300
Throst depth mm 320 320 410 410 410 410 410 410 410 410
Die setting height mm 420 420 470 470 470 470 470 470 470 470
Stroke of ram Y axis mm 150 150 200 200 200 200 200 200 200 200
Stroke of backgauge X axis mm 500 500 500 500 500 500 500 500 500 500
Stroke of backgauge R axis mm 160 160 160 160 160 160 160 160 160 160
Approach speed of Y axis mm/s 200 200 200 200 200 200 200 200 200 200
Bending speed of Y axis mm/s 1-20 1-20 1-20 1-20 1-20 1-20 1-15 1-15 1-15 1-15
Return speed of Y axis mm/s 200 200 200 200 200 200 200 200 200 200
X axis speed mm/s 500 500 500 500 500 500 500 500 500 500
R axis speed mm/s 150 150 150 150 150 150 150 150 150 150
Main motor power kw 2×3 2×3 2×5 2×5 2×5 2×5 2×6 2×6 2×6 2×6
Oil tank volume L 2×20 2×20 2×20 2×20 2×20 2×20 2×30 2×30 2×30 2×30







6 Axis CNC Press Brake Machine Hybrid 0 6 Axis CNC Press Brake Machine Hybrid 1
1 -axis backgauge (X) 2 -axis backgauge (X, R)
6 Axis CNC Press Brake Machine Hybrid 2 6 Axis CNC Press Brake Machine Hybrid 3
4 -axis backgauge (X, R, Z1, Z2) 6 -axis backgauge (X1, X2, R1, R2, Z1, Z2)





DELEM CNC Control System

  • 2D touch graphics programming
  • 3D product grapgis simulation display
  • 17" High resolusition TFT ture colr display
  • Complete windows application package
  • Compatible DELEMmodular architerture system
  • USB, peripheral interface
  • Application of user programes in multitask environment
  • Angle detection sensor interface
  • Extensible to bending automation
 6 Axis CNC Press Brake Machine Hybrid 4

      6 Axis CNC Press Brake Machine Hybrid 5

Laser Protection Device



Imported lasersafe laser protection device, a aworld-renowned brand, is fuuly in line with the EU CE standard


Manual Crowning

  1. Very precise bending angles
  2. Europe type dies with 60 mm and 90 mm
  3. Base can be clamped as well as single dies with 13 mm tang
  4. Manual crowning with a handle
  5. Precise positioning and alignment of the crowning table
 6 Axis CNC Press Brake Machine Hybrid 6

      6 Axis CNC Press Brake Machine Hybrid 7

Manual Upper Tool Clamping

  1. Safe and fast tool change
  2. Can be used without modifying Europe type punches
  3. Front clamp - vertical tool change
  4. Rear clamp - horizontal tool change


BackGauge



HOSTON press brake are provided are equipped with a backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning.

 6 Axis CNC Press Brake Machine Hybrid 8
