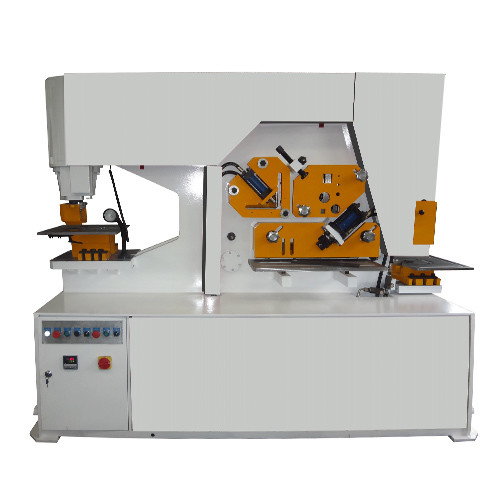

Double Cylinder Ironworker HIW-120S
The machine design is exquisite and the structure is stable.Hydraulic transmition and mechanical conventional pressing are adopted.There are five stations,in which a is an independent station and BCDE is a combined station.The stroke of pumching and shearing is adjustable.Different cutters can be selected to cut ,punch, cut, chamber and die shear flat steel,square steel,round steel,bar,angelk steel,channel steel,I-beam,Z-beam and other common solid steel materials.The worktable is equipped with T-groove and ruler,which is convenient for the free installation and adjustment of tooling and die.Double foot switch,free and independent operation,double efficiency.
| Model |
HIW-60/D |
HIW-90/S/D |
HIW-120/S/D |
HIW-160/S/D |
| Processing Capacity(KN) |
600 |
900 |
1200 |
1600 |
| Material Tensile Strength(Mpa) |
≤450 |
≤450 |
≤450 |
≤450 |
| Ram Stroke(mm) |
80 |
80 |
80 |
80 |
| Number of Stroke(times/min)(mm) |
8-22 |
8-22 |
8-22 |
8-22 |
| Throat Depth(mm) |
300 |
355 |
400 |
600 |
| Shear Angle |
7° |
8° |
8° |
8° |
| Flat Shearing |
Max. Shearing Capacity
(thickness*width)(mm)
|
16×250 |
20×330 |
25×330 |
30×355 |
| 8×400 |
10×480 |
16×600 |
20×600 |
| Profile Steel Shearing |
Square Bar(mm) |
40 |
45 |
50 |
55 |
| Round Bar(mm) |
45 |
50 |
60 |
65 |
| C-channel(mm) |
126 |
160 |
200 |
280 |
| I-beam(mm) |
126 |
160 |
200 |
280 |
| Angle Shearing |
90° Shearing(mm) |
120×10 |
140×12 |
160×14 |
180×16 |
| 90° Shearing(mm) |
70×8 |
70×10 |
80×7 |
80×10 |
| Hole Punching |
Max. Punching Capaciy
(diameter*thickness)(mm)
|
25×16 |
30×20 |
35×25 |
38×30 |
| Motor |
4 |
5.5 |
7.5 |
11 |
| Dimension(mm) |
1650×800×1780 |
1950×900×1930 |
2350×980×2100 |
2680×1060×2380 |
Standard Series:
Only one operator can work on this machine.
With one standard set of unit, including one pump, one motor and one valve.
Manual clamping
Without temperature cooling system
S series:
Only one opertaor can work on this machine.
With one standard set of unit, including one pump, one motor and one valve.
Manual clamping
Automatic clamping system in angle and plate shearing station
Temperature cooling system
D series:
Dual working ironworker(which means two operators can work on the machine at the same time)
With two sets of hydraulic units, including two pumps, two motors and two valves.
Automatic clamping system in angle and plate shearing station
Temperature colling system
Standard Functions:
Punching; Angle, C-channel Punching; H-beam Punching
Angle Shear; Round Bar Shear; Square Bar Shear; Flat-Bar Shear; Angle Miter Shear
Notching;
Optional Functions:
Pipe Notcing
Pipe Punching
Press Brake
Angle Bending
Radius Corners
Rounding off Corners
Bialateral Rounding off
Vee Nocthing
C-channel Jointing
I-Beam Shear
Channel Shear
 |
|
Punching Station
1. A full range of punches and dies are available for various punchig needs.
2.Quick change retaining nut system for fast punch tooling change.
3.Thoughtfully designed stripper for visibility, safety andease of use.
4. A large 2-piece table with scales and gauging stops isstandard on all models.
5.Stripper with interchangeable plates of various openings to minimize deformation is standard on all models
|
|
Flat Bar Shearing Station
1.Specially machined upper blade to give a clean shearwith minimum distortion.
2. Lower blade has four usable cutting edges.
3. Variable degree miter-cutting on angle flange.
4. Easily adiustable hold-down.
5.Support table with guides for accurate positioning.
|
|
|
Angle Shearing Station
1. Single shear with no material loss and minimal deformation.
2.45° miter-cut is easy and clean.
3. Stationary blades with four usable cutting edges.
4.Selectable corner radii on moving blades for optimumresults on small or large angles
|
|
Bar Shearing Station
1.One hold-down for various sizes of square bar shear-ing and round bar shearing.
2.Optional channel and section bar shear tooling is available for most models.(See specification chart fordetails)
|
|
|
Notching Station
1. ldeal for notching of flat bars and angles.
2.Electrically interlocked safety quard for maximumsafety and visibility.
3.Gauging table included with stops for precise positioning.
|
