Pipe Sheet Half Hydraulic Profile Bending Machine For Sale
  • Pipe Sheet Half Hydraulic Profile Bending Machine For Sale
Pipe Sheet Half Hydraulic Profile Bending Machine For Sale

Pipe Sheet Half Hydraulic Profile Bending Machine For Sale

Place of Origin China
Brand Name Hoston
Model Number WYQ24
Product Details
Highlight:

hydraulic profile bending machine

,

profile sheet bending machine

,

profile pipe bending machine

Payment & Shipping Terms
Minimum Order Quantity
1
Payment Terms
L/C, T/T
Supply Ability
100
Product Description

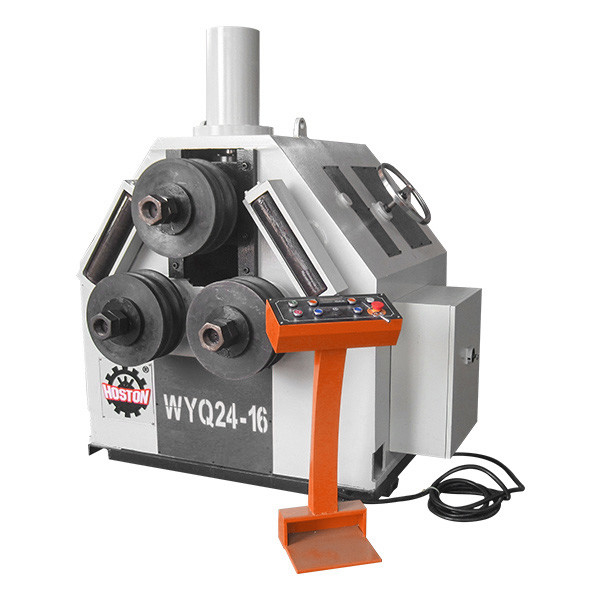

WYQ24 Half Hydraulics Profile Bending Machine



WYQ24 series is half hydrualic type profile bending machine. It is widely in petrol, chemical, shipyard, metal working and machine manufatcuring industries. Once feeding can finish bending and checking circle. Two bottom rollers fixed, top roller lifting by hydraulic oil tank. Three drive rolls, the power come from hydraulic motor. The side guide rollers ensure the high quality bending of asymetric profiles. Advanced and reliable structure. Small volume and full fuction. It's an advanced metal forming euqipment in the world at present.



Technical date W24S(WY24-)
Max. bending resistant modulus 6 16 30 45 75 100 140 180 260 320 400 500
Bending speed(m/min) 6 5 4
Yield limit(mpa) S=250
Angle, inner bending Max. section size(mm) 40*5 70*8 80*8 90*10 100*10 120*12 140*16 150*16 160*16 180*14 200*18 200*20
Angle, outer bending Max. section size(mm) 50*5 80*8 90*10 100*10 120*12 140*16 150*16 160*16 180*14 200*18 200*24 250*25
Channel, outer bending Max. section size(mm) 8 12 16 20 25 28 30 32 36 40 45 50
Channel, inner bending Max. section size(mm) 8 12 16 20 25 28 30 32 36 40 45 50
Plate, flat bending Max. section size(mm) 100*18 150*25 180*25 200*30 220*40 250*40 280*50 300*50 330*50 360*60 400*75 500*76
Plate, vertical bending Max. section size(mm) 50*12 75*16 90*20 100*25 110*40 120*40 150*40 180*30 190*40 190*50 200*50 200*60
Tube bending Max. section size(mm) 42*4 76*4.5 89*5 89*8 114*5 159*5 168*6 168*8 219*8 245*8 273*8 323*10
Rod bending Max. section size(mm) 38 52 62 75 85 90 100 110 120 135 150 160
Square bending Max. section size(mm) 45*3 60*4 70*4 80*6 90*8 100*10 125*10 140*10 150*10 165*10 180*12 200*12
