Cnc Exhaust Electric Hydraulic Pipe Bending Machine For Ms Aluminum Copper
  • Cnc Exhaust Electric Hydraulic Pipe Bending Machine For Ms Aluminum Copper
  • Cnc Exhaust Electric Hydraulic Pipe Bending Machine For Ms Aluminum Copper

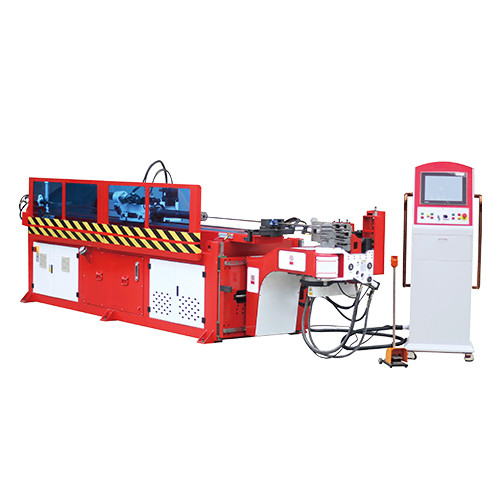

Cnc Exhaust Electric Hydraulic Pipe Bending Machine For Ms Aluminum Copper

Cnc Exhaust Electric Hydraulic Pipe Bending Machine For Ms Aluminum Copper

Brand Name Hoston
Model Number DW-38CNC-4A-3S
Product Details
Max. Tube O.d. Bneding Capacity:
38.1mm
Max. Tube Wall Thickness:
2.0mm
CLR Centerline Radius Range:
150mm
Max. Bending Angle:
190°
Max. Mandrel Working Distance:
2500mm
Highlight:

electric hydraulic pipe bending machine

,

electric hydraulic pipe bender

,

electric pipe bending machine

Payment & Shipping Terms
Minimum Order Quantity
1
Supply Ability
100
Product Description

Cnc Electric Exhaust Hydraulic Tube Pipe Bending Machine For Ms Aluminum Copper DW-38CNC-4A-3S

  1. Procide various bending of 1DR-∞
  2. 4/5 Axes servo-motor controlled
  3. 3D Simulation of bending process and application(optional)
  4. Suitable Industries: Car frame, car seat, handle bar, exercise equipemnt, tubular furniture, architecture, aircraft, exhaust pipes



Model
DW-38CNC-3A
Hydr Bend
DW-38CNC-4A
Hydr Bend
Max. Tube o.d. Bneding Capacity 38.1mm 38.1mm
Max. Tube Wall Thickness 1.5mm 2.0mm
CLR Centerline Radius Range 25-150mm 150mm
Max. Bending Angle 190° 190°
Max. Mandrel working Distance 2300mm 2500mm
Processing Speed Tube Feeding Speed 750mm/sec 800mm/sec
Tube Roration Speed 320°/sec 300°/sec
Tube Bending Speed 90°/sec 90°/sec
Repeatability Tube Feeding Precision ±0.01mm ±0.01mm
Tube Roration Precision ±0.01° ±0.01°
Tube Bending Precision ±0.01° ±0.01°
Total Motor Power 11kw 12.5kw
Overall Weight 2000kg 3200kg



Hybrid CNC Pipe Bending Machine



PLC operation

1.Touch screen display, CNC computer operation, can store 200 group memory；

2.The error message is displayed on the screen to help the operator clear it immediately.

Customizable molds
1. Customized mold can be used for different pipe fittings;
2. Multiple layers of dies can be stacked to achieve different bend radii on one tube.

Core pulling oil cylinder
1. Feeding and rotation angle are controlled by servo, and the elbow is controlled by oil cylinder;
2 with slow bending, slow core pulling function

Cnc Exhaust Electric Hydraulic Pipe Bending Machine For Ms Aluminum Copper 0



Cnc Exhaust Electric Hydraulic Pipe Bending Machine For Ms Aluminum Copper 1
