Stainless Steel Exhaust Pipe Bender 1/2" 3 4 Inch Tube Bender
  • Stainless Steel Exhaust Pipe Bender 1/2
Stainless Steel Exhaust Pipe Bender 1/2

Stainless Steel Exhaust Pipe Bender 1/2" 3 4 Inch Tube Bender

Brand Name Hoston
Model Number DW-90CNC-6A
Product Details
Highlight:

stainless steel exhaust pipe bender

,

3 Inch Tube Bender

,

4 Inch Tube Bender

Payment & Shipping Terms
Minimum Order Quantity
1
Supply Ability
100
Product Description

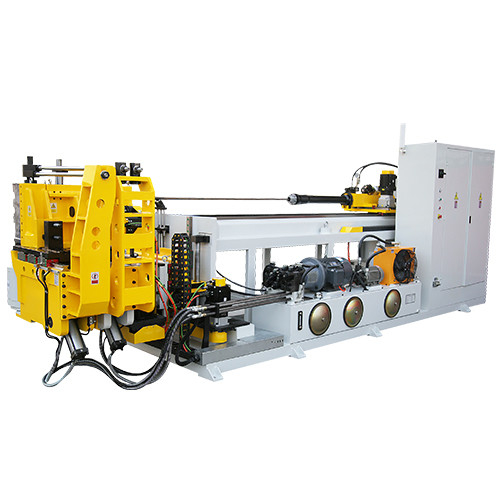

DW-90CNC-6A Stainless Pipe Bending Machine Tube Bending Machine 3 4 Inch Tube Bender

  1. Tube bending, feeding and rotating by servo motor. There is 11 axis fully auto as option.
  2. Stacks: 1, 2, 3, 4, 5, 6 as option.
  3. Industry PC controller 15" touch screen, easy operation.
  4. Easy to change bend tooling.
Model
DW-75CNC-2A
Hydr Bend
DW-75CNC-2A
Hydr Bend
DW-89CNC-2A
Hydr Bend
DW-89CNC-3A
Servo Bend
Max. Tube o.d. Bneding Capacity 76.2mm 70mm 88.9mm 80mm
Max. Tube Wall Thickness 3.5mm 3mm 5.0mm 3.5mm
CLR Centerline Radius Range 50-350mm 50-350mm 80-400mm 80-400mm
Max. Bending Angle 190° 190° 190° 190°
Max. Mandrel working Distance 3300mm 3300mm 3300mm 3300mm
Processing Speed Tube Feeding Speed 500mm/sec 500mm/sec 400mm/sec 400mm/sec
Tube Roration Speed 180°/sec 180°/sec 120°/sec 120°/sec
Tube Bending Speed 20°/sec 40°/sec 15°/sec 30°/sec
Repeatability Tube Feeding Precision ±0.01mm ±0.01mm ±0.01mm ±0.01mm
Tube Roration Precision ±0.01° ±0.01° ±0.01° ±0.01°
Tube Bending Precision ±0.02° ±0.02° ±0.02° ±0.02°
Total Motor Power 11kw 22kw 15kw 30kw
Overall Weight 4000kg 4800kg 4500kg 5000kg





Stainless Steel Exhaust Pipe Bender 1/2" 3 4 Inch Tube Bender 0

Stainless Steel Exhaust Pipe Bender 1/2" 3 4 Inch Tube Bender 1
