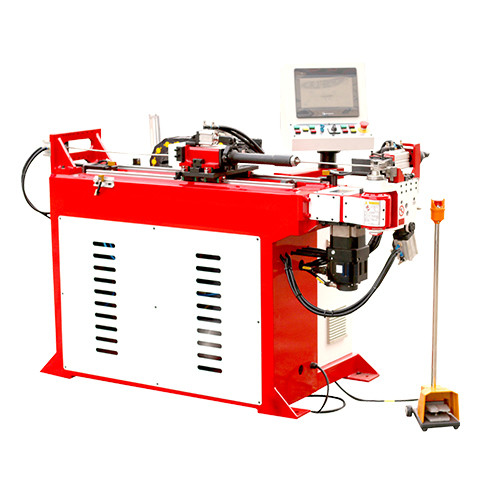

Iron Tube 3d Cnc Pipe Bending Machine Cnc Bender Machinery

Name: Iron Tube 3d Cnc Pipe Bending Machine Cnc Bender Machinery
Brand: Jiangsu Hoston Machine Tools Co., Ltd.
SKU: DW-10CNC-3A
Availability: InStock

Brand Name	Hoston
Model Number	DW-10CNC-3A

Product Details

Max. Tube O.d. Bneding Capacity:

38.1mm

Max. Tube Wall Thickness:

1.5mm

CLR Centerline Radius Range:

25-150mm

Max. Bending Angle:

190°

Max. Mandrel Working Distance:

2300mm

Highlight:

3d pipe bending machine manufacturer

3d cnc pipe bending machine

3d pipe bender

Payment & Shipping Terms

Minimum Order Quantity

Supply Ability

100

Product Description

CNC 3D Iron Tube Pipe Bending Machine / Price Of Cnc Bender Machinery DW-10CNC-3A

Electric control system: world-renowned controllers are applied. For example, servo drivers, servo motors, positioning modules and CPU produced by Mitsubishi, Yaskawa and Delta are applied and they have strong performance and excellent stability.
Ultra-large CPU that can hold the edition of 400 groups of archives is applied. If it is not sufficient, transmission software can be purchased and installed for the computer. The archives can be stored in hard disk to expand the number of edit groups infinitely. (Optional)
WINDOWS operating system is installed in industrial computer to be mated with servo system, so it not only has the servo drive feature, but also has the archives management convenience brought by WINDOWS operating system. The archives can also be stored in hard disk or soft disk to expand the number of edit groups infinitely.
It can detect the error and fault automatically and display them on screen, so that the operator can eliminate the failures easily.

Model		DW-10CNC-3A Hydr Bend	DW-18CNC-3A Hydr Bend	DW-18CNC-4A Hydr Bend
Max. Tube o.d. Bneding Capacity		10mm	18mm	18mm
Max. Tube Wall Thickness		1.0mm	1.0mm	2.0mm
CLR Centerline Radius Range		5-30mm	15-100mm	15-100mm
Max. Bending Angle		190°	190°	190°
Max. Mandrel working Distance		1000mm	1000mm	1000mm
Processing Speed	Tube Feeding Speed	1000mm/sec	900mm/sec	900mm/sec
	Tube Roration Speed	720°/sec	540°/sec	540°/sec
	Tube Bending Speed	120°/sec	90°/sec	90°/sec
Repeatability	Tube Feeding Precision	±0.01mm	±0.01mm	±0.01mm
	Tube Roration Precision	±0.01°	±0.01°	±0.01°
	Tube Bending Precision	±0.01°	±0.01°	±0.01°
Total Motor Power		2.5kw	7.0kw	7.5kw
Overall Weight		400kg	700kg	750kg

Hybrid CNC Pipe Bending Machine

PLC operation

1.Touch screen display, CNC computer operation, can store 200 group memory；

2.The error message is displayed on the screen to help the operator clear it immediately.

Customizable molds

1. Customized mold can be used for different pipe fittings;

2. Multiple layers of dies can be stacked to achieve different bend radii on one tube.

Core pulling oil cylinder

1. Feeding and rotation angle are controlled by servo, and the elbow is controlled by oil cylinder;

2 with slow bending, slow core pulling function
