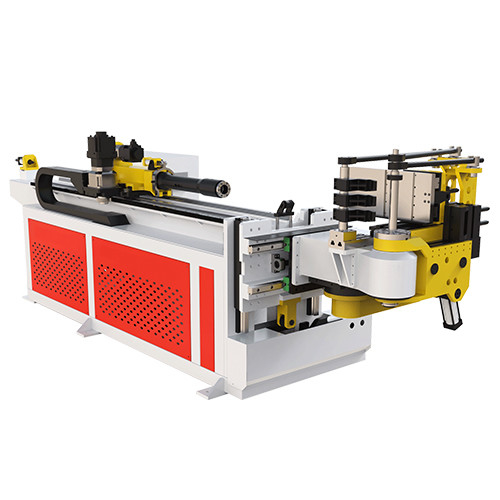

Hydraulic Automatic Cnc Pipe Bending Machine For Heat Exchanger

Hydraulic Automatic Cnc Pipe Bending Machine For Heat Exchanger

Brand Name Hoston
Model Number DW-65CNC-4A
Product Details
Max. Tube O.d. Bneding Capacity:
65mm
Max. Tube Wall Thickness:
2.5mm
CLR Centerline Radius Range:
150mm
Max. Bending Angle:
190°
Max. Mandrel Working Distance:
2500mm
Highlight:

automatic cnc pipe bending machine

,

automatic hydraulic pipe bending machine

,

pipe bending machine automatic

Payment & Shipping Terms
Minimum Order Quantity
1
Supply Ability
100
Product Description

Large Diameter Helical Iron Mandrel Tube Pipe Bending Machine DW-65CNC-3A

  1. 4 Axis or 5 axis servo-motor controlled, multi-stack toolings
  2. PC-base CNC controller, windows system, easy operation
  3. 3D simulation of bending process and application(optional)
Model
DW-65CNC-4A/5A
Hydr Bend
Max. Tube o.d. Bneding Capacity 65mm
Max. Tube Wall Thickness 2.5mm
CLR Centerline Radius Range 150mm
Max. Bending Angle 190°
Max. Mandrel working Distance 2500mm
Processing Speed Tube Feeding Speed 710mm/sec
Tube Roration Speed 260°/sec
Tube Bending Speed 90°/sec
Repeatability Tube Feeding Precision ±0.01mm
Tube Roration Precision ±0.01°
Tube Bending Precision ±0.01°
Total Motor Power 27.6kw
Overall Weight2222 4200kg



Hybrid CNC Pipe Bending Machine



Suitable industries: car frame, car seat, handle bar, exercise equipment, furniture, architecture, aircraft, exhaust pipes

Hydraulic Automatic Cnc Pipe Bending Machine For Heat Exchanger



Hydraulic Automatic Cnc Pipe Bending Machine For Heat Exchanger
