Single-Head Hydraulic Exhaust Pipe Bender Cnc Tube Bending Equipment
  • Single-Head Hydraulic Exhaust Pipe Bender Cnc Tube Bending Equipment

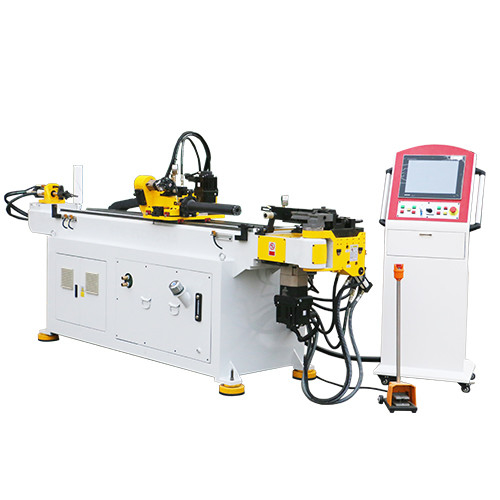

Single-Head Hydraulic Exhaust Pipe Bender Cnc Tube Bending Equipment

Single-Head Hydraulic Exhaust Pipe Bender Cnc Tube Bending Equipment

Brand Name Hoston
Model Number DW-25CNC-3A
Product Details
Max. Tube O.d. Bneding Capacity:
25.4mm
Max. Tube Wall Thickness:
1.5mm
CLR Centerline Radius Range:
18-150mm
Max. Bending Angle:
190°
Max. Mandrel Working Distance:
2000mm
Highlight:

hydraulic exhaust pipe bender

,

cnc tube bending equipment

,

cnc tube bending machine

Payment & Shipping Terms
Minimum Order Quantity
1
Supply Ability
100
Product Description

Single-Head Hydraulic Cnc Pipe Bending Machine DW-25CNC-3A



  1. 3 Axes servo-motor controlled with one-stack tooling
  2. Super fast bending with high precision, good bending repetition
  3. Applying for auto engine, brake&fuel tubing, A/C tube, heat exchanger chemical engineering and so on
Model
DW-25CNC-3A
Hydr Bend
DW-25CNC-5A
Hydr Bend
Max. Tube o.d. Bneding Capacity 25.4mm 25.4mm
Max. Tube Wall Thickness 1.5mm 1.5mm
CLR Centerline Radius Range 18-150mm 18-150mm
Max. Bending Angle 190° 190°
Max. Mandrel working Distance 2000mm 2000mm
Processing Speed Tube Feeding Speed 850mm/sec 850mm/sec
Tube Roration Speed 360°/sec 360°/sec
Tube Bending Speed 120°/sec 120°/sec
Repeatability Tube Feeding Precision ±0.01mm ±0.01mm
Tube Roration Precision ±0.01° ±0.01°
Tube Bending Precision ±0.01° ±0.01°
Total Motor Power 9.0kw 11kw
Overall Weight 1200kg 1500kg


Hybrid CNC Pipe Bending Machine

PLC operation
1.Touch screen display, CNC computer operation, can store 200 group memory；

2.The error message is displayed on the screen to help the operator clear it immediately.

Customizable molds
1. Customized mold can be used for different pipe fittings;
2. Multiple layers of dies can be stacked to achieve different bend radii on one tube.

Core pulling oil cylinder
1. Feeding and rotation angle are controlled by servo, and the elbow is controlled by oil cylinder;
2 with slow bending, slow core pulling function



 Single-Head Hydraulic Exhaust Pipe Bender Cnc Tube Bending Equipment 0
Single-Head Hydraulic Exhaust Pipe Bender Cnc Tube Bending Equipment 1
