Home > Products > Pipe Bending Machine >

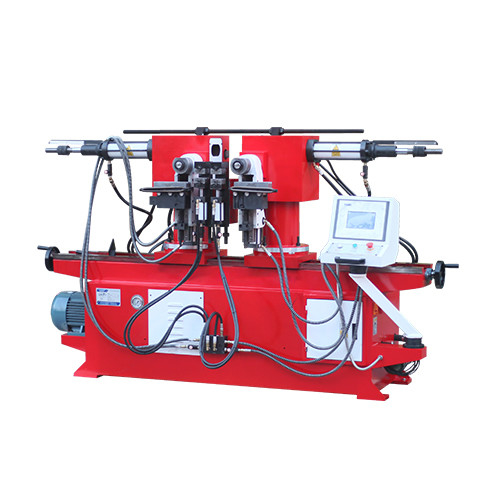

Double Head Automatic CNC Pipe Bending Machine Hydraulic Bender Machine
  • Double Head Automatic CNC Pipe Bending Machine Hydraulic Bender Machine
  • Double Head Automatic CNC Pipe Bending Machine Hydraulic Bender Machine
  • Double Head Automatic CNC Pipe Bending Machine Hydraulic Bender Machine
  • Double Head Automatic CNC Pipe Bending Machine Hydraulic Bender Machine
  • Double Head Automatic CNC Pipe Bending Machine Hydraulic Bender Machine
Double Head Automatic CNC Pipe Bending Machine Hydraulic Bender Machine

Double Head Automatic CNC Pipe Bending Machine Hydraulic Bender Machine

Brand Name Hoston
Model Number SW-38H
Product Details
Max. Tube O.d. Wall:
ⲫ114x7.5mm
Range Of CLR:
90-600mm
Range Of Bending:
0-190°
Mandrel Length:
5500mm
Operating Height:
1500mm
Highlight:

Automatic CNC Pipe Bending Machine Hoston

,

hydraulic bender

,

hydraulic bender machine

Payment & Shipping Terms
Minimum Order Quantity
1
Supply Ability
100
Product Description

Double Head Automatic CNC Pipe Bending Machine Hydraulic Tube Bender SW-38H

  1. Twin heads working simultaneously, 3D bending by turning heads
  2. Easy operation,Stable running, multiple pipes bending with highefficiency



Model
SW-38H
Hydr Bend
SW-50H
Hydr Bend
Max. Tube o.d. Wall 38.1mm 50.8mm
Max. Tube Wall Thcikness 2.0mm 2.5mm
CLR Radius 30-180mm 40-220mm
Max. Bending Angle 185° 185°
Distance Range of 2 Working Heads 180-1400mm 220-1500mm
Operating Height

1200mm

 1500mm
Tube Bending Speed 60° /sec 50° /sec
Tube Bending Precision ±0.2° ±0.2°
System Hydraulic Pressure 14Mpa 14Mpa
Total Motor Power 6.0kw 8.0kw
Overall Weight 1500kg 1800kg
Machine Length 2800x1000x1500 3200x1100x1600





Double Head Automatic CNC Pipe Bending Machine Hydraulic Bender Machine 0

Tags:

Automatic CNC Pipe Bending Machine Hoston,

hydraulic bender,

hydraulic bender machine
