Automatic Cnc Hydraulic Pipe Bending Machine Cnc
  • Automatic Cnc Hydraulic Pipe Bending Machine Cnc
  • Automatic Cnc Hydraulic Pipe Bending Machine Cnc
  • Automatic Cnc Hydraulic Pipe Bending Machine Cnc
  • Automatic Cnc Hydraulic Pipe Bending Machine Cnc
  • Automatic Cnc Hydraulic Pipe Bending Machine Cnc
Automatic Cnc Hydraulic Pipe Bending Machine Cnc

Automatic Cnc Hydraulic Pipe Bending Machine Cnc

Brand Name Hoston
Model Number DW-75CNC-2A
Product Details
Max. Tube O.d. Bneding Capacity:
76.2mm
Max. Tube Wall Thickness:
3.5mm
CLR Centerline Radius Range:
50-350mm
Max. Bending Angle:
190°
Max. Mandrel Working Distance:
3300mm
Highlight:

automatic cnc pipe bending machine

,

cnc hydraulic pipe bending machine

,

cnc pipe bending machine

Payment & Shipping Terms
Minimum Order Quantity
1
Supply Ability
100
Product Description

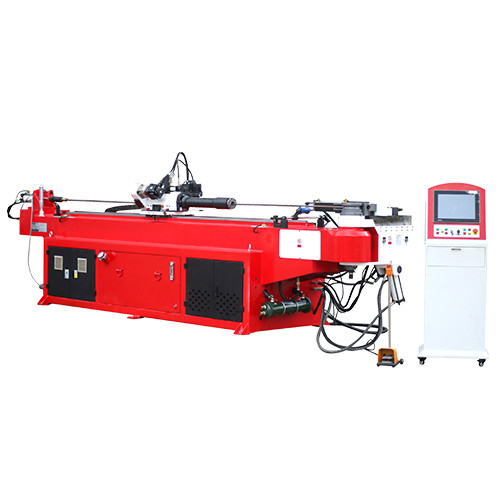

CNC Automatic Hydraulic Pipe Tube Bending Machine DW-75CNC-2A



1.It has the advantages of high bending power and high precision of three-axis control. All programming and input are directly carried out on the interactive touch screen. All information descriptions can be automatically selected. The operation is extremely convenient, fast and accurate.
2.High-performance medium-sized pipe bending machine, easy-to-operate controller, makes your operation and programming easier, and has a wide range of uses. It is used in mass production or standardized production, such as in automobiles, motorcycles and other parts, such as exhaust pipes, Production of seat cushions, high-pressure vessel pipes, sports equipment and all iron pipe furniture, as well as for boilers, aerospace, shipbuilding and general engineering piping.

Model
DW-75CNC-2A
Hydr Bend
DW-75CNC-2A
Hydr Bend
DW-89CNC-2A
Hydr Bend
DW-89CNC-3A
Servo Bend
Max. Tube o.d. Bneding Capacity 76.2mm 70mm 88.9mm 80mm
Max. Tube Wall Thickness 3.5mm 3mm 5.0mm 3.5mm
CLR Centerline Radius Range 50-350mm 50-350mm 80-400mm 80-400mm
Max. Bending Angle 190° 190° 190° 190°
Max. Mandrel working Distance 3300mm 3300mm 3300mm 3300mm
Processing Speed Tube Feeding Speed 500mm/sec 500mm/sec 400mm/sec 400mm/sec
Tube Roration Speed 180°/sec 180°/sec 120°/sec 120°/sec
Tube Bending Speed 20°/sec 40°/sec 15°/sec 30°/sec
Repeatability Tube Feeding Precision ±0.01mm ±0.01mm ±0.01mm ±0.01mm
Tube Roration Precision ±0.01° ±0.01° ±0.01° ±0.01°
Tube Bending Precision ±0.02° ±0.02° ±0.02° ±0.02°
Total Motor Power 11kw 22kw 15kw 30kw
Overall Weight 4000kg 4800kg 4500kg 5000kg



Hybrid CNC Pipe Bending Machine

  • 2/3 Axes servo- motor controlled
  • Rigid and robust structure, powerful and stable design, min bending radius
  • Applying for auto parts, gym equipments, exhausts, contruction and so on.

Automatic Cnc Hydraulic Pipe Bending Machine Cnc 0

Automatic Cnc Hydraulic Pipe Bending Machine Cnc 1
