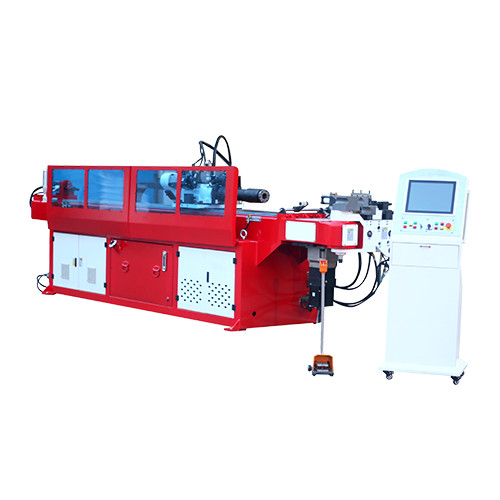

Large Diameter Helical Iron Mandrel Pipe Bending Machine Cnc

Large Diameter Helical Iron Mandrel Pipe Bending Machine Cnc

Brand Name Hoston
Model Number DW-65CNC-3A
Product Details
Max. Tube O.d. Bneding Capacity:
60mm
Max. Tube Wall Thickness:
2.5mm
CLR Centerline Radius Range:
45-280mm
Max. Bending Angle:
190°
Max. Mandrel Working Distance:
3000mm
Highlight:

mandrel pipe bending machine

,

cnc mandrel pipe bender

,

cnc mandrel bender

Payment & Shipping Terms
Minimum Order Quantity
1
Supply Ability
100
Product Description

Large Diameter Helical Iron Mandrel Tube Pipe Bending Machine DW-65CNC-3A





Bending pipe with hydrauic motor or servo motor, rotating and feeding pipe with servo motor driven, high efficiency.
Multi-stack capability: the pipe bender available in single or multi-stack, fixed and variable radius capability.
CNC tube bending machine suitable for various area, like car exhaust pipe, air conditional tube, frame of biycle and motorcycle, chairs and table frame, fitness equipment ect...




Model
DW-50CNC-3A
Hydr Bend
DW-65CNC-3A
Hydr Bend
Max. Tube o.d. Bneding Capacity 50.8mm 60mm
Max. Tube Wall Thickness 3.5mm 2.5mm
CLR Centerline Radius Range 35-200mm 45-280mm
Max. Bending Angle 190° 190°
Max. Mandrel working Distance 2600mm 3000mm
Processing Speed Tube Feeding Speed 750mm/sec 600mm/sec
Tube Roration Speed 320°/sec 240°/sec
Tube Bending Speed 75°/sec 60°/sec
Repeatability Tube Feeding Precision ±0.01mm ±0.01mm
Tube Roration Precision ±0.01° ±0.01°
Tube Bending Precision ±0.01° ±0.01°
Total Motor Power 15.5kw 21kw
Overall Weight2222 2200kg 3000kg



Hybrid CNC Pipe Bending Machine

  • 3 Axes servo- motor controlled
  • Super fast bending with high precision, good bending repetition
  • Applying for motorcycle frames, furnitures, auto parts, medeical equipmeny and so on.

Large Diameter Helical Iron Mandrel Pipe Bending Machine Cnc 0

Large Diameter Helical Iron Mandrel Pipe Bending Machine Cnc 1
