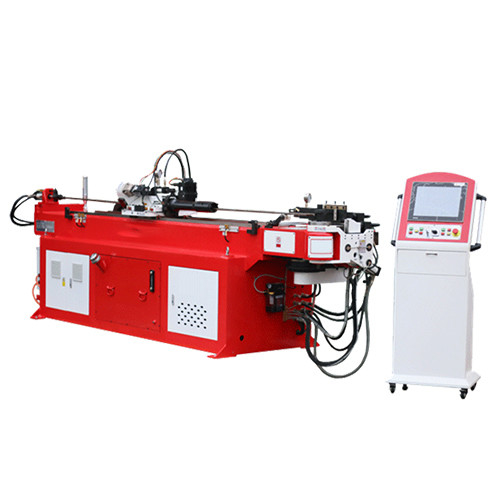

Hydraulic Round 3d Cnc Pipe Bending Machine For Stainless Steel

Name: Hydraulic Round 3d Cnc Pipe Bending Machine For Stainless Steel
Brand: Jiangsu Hoston Machine Tools Co., Ltd.
SKU: DW-38CNC-3A
Availability: InStock

Brand Name	Hoston
Model Number	DW-38CNC-3A

Product Details

Max. Tube O.d. Bneding Capacity:

38.1mm

Max. Tube Wall Thickness:

1.5mm

CLR Centerline Radius Range:

25-150mm

Max. Bending Angle:

190°

Max. Mandrel Working Distance:

2300mm

Highlight:

3d pipe bending machine

3d cnc pipe bending machine

round pipe bending machine

Payment & Shipping Terms

Minimum Order Quantity

Supply Ability

100

Product Description

Hydraulic Round 3D Pipe Tube Bending Machine for Stainless Steel DW-38CNC-3A

Fully automatic and CNC pipe bending machine
Equipped with 2 servo motor programmable axis
Feeding: servo motor drive; Rotation: servo motor drive
Bending: hydraulic and encoder control; Servomotor with reducer.
Imported hydraulic system and PLC(standard) unit or IPC(optional).
Automatic lubrication system for moving areas.
Self-diagnostic system, detecting the error immediately.
Multiple groups pipe-bending information storage.
Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
Touch screen and human/machine interface control provide user friendly operations.

Model		DW-38CNC-3A Hydr Bend	DW-38CNC-4A Hydr Bend
Max. Tube o.d. Bneding Capacity		38.1mm	38.1mm
Max. Tube Wall Thickness		1.5mm	2.0mm
CLR Centerline Radius Range		25-150mm	150mm
Max. Bending Angle		190°	190°
Max. Mandrel working Distance		2300mm	2500mm
Processing Speed	Tube Feeding Speed	750mm/sec	800mm/sec
	Tube Roration Speed	320°/sec	300°/sec
	Tube Bending Speed	90°/sec	90°/sec
Repeatability	Tube Feeding Precision	±0.01mm	±0.01mm
	Tube Roration Precision	±0.01°	±0.01°
	Tube Bending Precision	±0.01°	±0.01°
Total Motor Power		11kw	12.5kw
Overall Weight		2000kg	3200kg

Hybrid CNC Pipe Bending Machine

PLC operation

1.Touch screen display, CNC computer operation, can store 200 group memory；

2.The error message is displayed on the screen to help the operator clear it immediately.

Customizable molds

1. Customized mold can be used for different pipe fittings;

2. Multiple layers of dies can be stacked to achieve different bend radii on one tube.

Core pulling oil cylinder

1. Feeding and rotation angle are controlled by servo, and the elbow is controlled by oil cylinder;

2 with slow bending, slow core pulling function
